Programmable Transparent Wall Glass LED Display Screen for Advertising

Shenzhen Jingcan Opto-Tec Co.,Ltd
Contact Now

Programmable Transparent Wall Glass LED Display Screen for Advertising

Brand Name : JC

Model Number : Energy Saving

Certification : CE,ROHS,EMC

Place of Origin : GuangDong

MOQ : 1 square meter

Price : Discuss

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 square meter per month

Delivery Time : 7~10 working days after advance payment arrived .

Packaging Details : Paper carton / Wooden case/ Flight case

LED chip : Epistar

Application : building media decoration

Display Function : video

Power Supply : Meanwell

Screen Dimensin : Customized Size

Tube Chip Color : Full Color

Brightness : 8000nits

Contact Now

Programmable Transparent Wall Glass

LED Display Screen for Advertising

Product Description
1 Pixel Pitch(mm) W 5mm; H 10mm
2 Pixel configuration 1R1G1B / SMD1921
3 Pixel density 20,000 dots/m2
4 Brightness >3000 cd/m2
5 Module size(W*H) 320mm × 320mm
6 Module Resolution (W*H) 64 dots x 32 dots
7 Cabinet size (W*H) 640mm×960mm
8 Cabinet Resolution (W*H) 128 dots x 96 dots
9 Cabinet Material Aluminum
10 Cabinet Weight 6kg
11 Viewing Distance >5m
12 Power Consumption (W/sq.m) Max: 550 ; Ave: 180
13 Driver Mode 1/8 Scan
14 Supply Voltage AC220V/50HZ ; AC110V/60HZ
15 Operating temperature -20--50ºC
16 Operating Humidity 10%-90%
17 Refresh Rate 500-3000HZ Adjustable
18 Control System Synchronous or Asynchronous
19 Viewing Angel H: 120° ; V: 120°
20 IP Rating IP40
21 LED Life 100,000 Hours
22 Gray Scale Red, Green and Blue each 16K
23 Display Color 4096 Billion
24 Control Distance 100 m (no repeating); Optical fiber transmission: 500m- 15km
25 Display Function Video, Animation, Image, Text, Letter

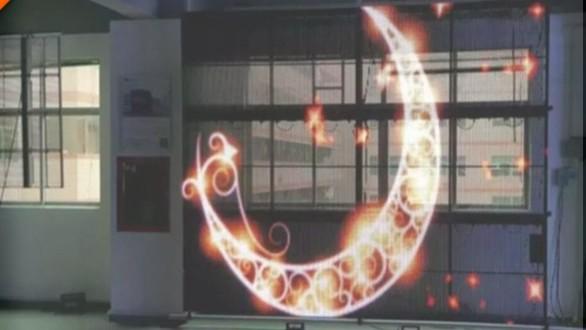

Transparent LED Display Screen

Programmable Transparent Wall Glass LED Display Screen for Advertising
Transparent LED Screen
Programmable Transparent Wall Glass LED Display Screen for Advertising

Product Features:

1. High transparency: The perspective rate is more than 50%, lighting and beautiful.

2. Ultra-thin: The thickness of the screen is only 10mm, the weight of one cabinet is only 6kg,

easy to transport and install.

3. Ultra-wide viewing angle: 140° viewing angle, perfect display effect.

4. Intelligent control: 3G and WiFi networking, convenient mobile phone control

5. Easy installation: quick lock design, easy to assemble and maintenance.

6. Perfect visual experience: unique visual impact, innovative advertising effects

7. Mainly used in glass curtain walls, building facades, hotels, shopping malls, 4S shops, stations and other places.

Company Information
Shenzhen Jingcan Opto-Tec Co., Ltd is a professional manufacturer engaging in the research and development, production, sales and service of LED display system.

With the continuous and stable development since 2007, Shenzhen Comcreating Co., Ltd has showed strong competition in the market both in products quality and service. Our products are CE approved, ROHS compliant, C-TICK and FCC certificated, and have been exported to USA, Canada, Argentina, Brazil, Ecuador, Venezuela, Honduras, Germany, Spain, Moldova, Poland, Netherlands, Russia, Sweden, France, Belgium, Turkey, Israel, Saudi Arabia, South Africa, Uganda, Egypt, Angola, India, Vietnam, Thailand, Uzbekistan, Kazakhstan, Mongolia, New Zealand, Australia and other 50 countries and regions, and gained a great reputation from customers. We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come together to create a lasting relationship, and let us help you in this business well.

WHY CHOOSE Us

1.Quality is our lifeline.

2.You can get professional technical advice and solutions from our well-trained and qualified engineers

3.You can get suitable reliabl quality products within budget with most economy benefit from us.

4.You can get free training and online support at any time.

5.You will gain more than 2 years warranty and life time follow-up service.

6.Low MOQ, OEM service and logo printed is available.

7.Fast delivery.

8.With us, your money is safe and your business is safe.

FAQ

Q1. May I know the Minimum order for your products?
A: For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.

Q2.What's the difference between DIP(1R1G1B) and SMD (One LED, 3 in 1) ?
A: SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp; Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel. SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.

Q3. How long can I get the cargos?
A: Production time is about 12-25 working days. When confirmed the order, we can start production after receiving your deposit (30% TT in advance). we will update the production details in time and notice you before finish and after delivery the goods to you after we get full payment. About the time from start port to destination, it depends on the distance and the state of the forwarder.

Q4. May I know the package details?
A: For fixed installation, we use veneer case, usually 3-6 cabinets in 1 veneer case; For rental market, we suggest you use flight case, generally 6-8 cabinets in one flight case. We will ensure that It's safe to protect the screen on the way, also economical.

Q5. Besides this product, may I have other options?
A: Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.

Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Shenzhen JINGCAN Opto-Tec Co., Ltd is a professional manufacturer engaging in the research

and development, production, sales and service of LED display system.

With the continuous and stable development since 2007, Shenzhen Comcreating Co., Ltd has showed strong competition in the market both in products quality and service. Our products are CE approved, ROHS compliant, C-TICK and FCC certificated, and have been exported to USA, Canada, Argentina, Brazil, Ecuador, Venezuela, Honduras, Germany, Spain, Moldova, Poland, Netherlands, Russia, Sweden, France, Belgium, Turkey, Israel, Saudi Arabia, South Africa, Uganda, Egypt, Angola, India, Vietnam, Thailand, Uzbekistan, Kazakhstan, Mongolia, New Zealand, Australia and other 50 countries and regions, and gained a great reputation from customers. We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come together to create a lasting relationship, and let us help you in this business well.
